This week's tip addresses the TRIFIL process, which provides the creation of a block model from a wireframe, with high preservation of volumes.
The TRIFIL process is an interesting alternative to the WIREFILL process, as it allows the generation of rotated models, as well as greater adherence to wireframe thanks to different sub cell generation parameters. The tool is available in Studio CORE software, with the exception of Studio Mapper.

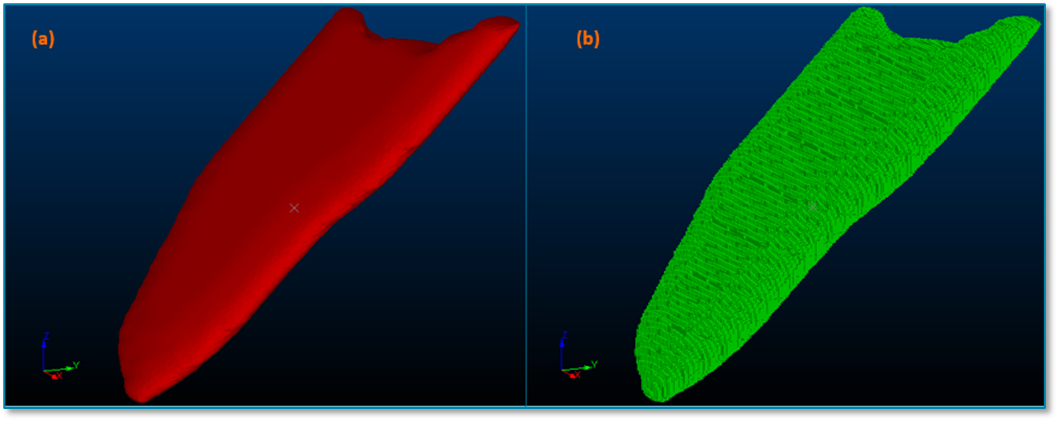

Figure 1: Comparison between the wireframe used (a) and the block model generated (b).

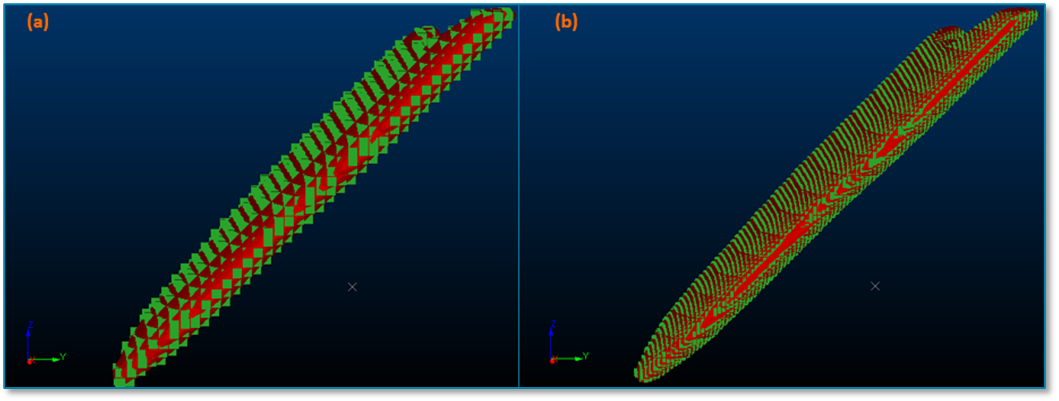

Figure 2: Comparison between the block model resulting from the WIREFILL process (a) and the TRIFIL one (b) from the same wireframe.
